Filter Supports
SKC filter supports are backing pads and screens in cellulose, porous plastic and stainless steel, for 25, 37 and 47 mm filters.
SKC filter supports are the backing pads and screens that sit under the filter in a sampling cassette. Various materials are used to support filters during sampling: cellulose, porous plastic (polypropylene) and stainless steel, for 25, 37 and 47 mm filters. They belong to the filter and cassettes accessories.
Which filter support material for which sample?
- Cellulose supports feature a smooth surface and uniform air flow distribution
- Porous plastic pads are impervious to most solvents
- Use stainless steel screens when cellulose or plastic will interfere with analysis
Stainless steel screens are available in wide mesh and fine mesh.
Which cellulose support pad for a 37 mm cassette?

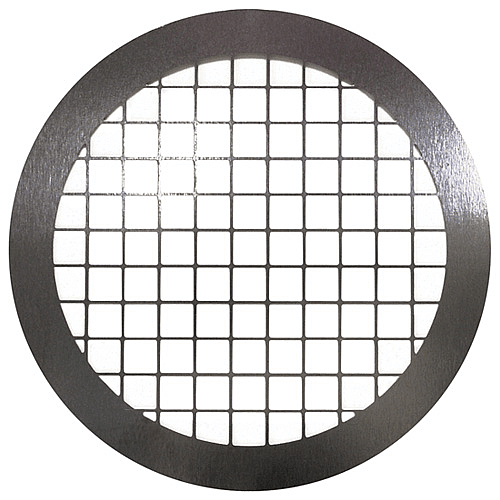

For 37 mm filters, the cellulose pad 225-27 is packed 100 per pack and 225-2700 is packed 500. The 37 mm cellulose spacer ring 225-23 (pack of 25) is listed for NIOSH 5506 and 5515. The 37 mm stainless steel screens are 225-26 (wide mesh) and 225-2637 (fine mesh), each sold singly. Porous plastic pads in polypropylene are 225-2901 (25 mm), 225-2902 (37 mm).
What else goes into the cassette?
For the cassette housing, see the SureSeal cassette blanks for empty 25, 37 and 47 mm housings, and the cassette and filter holders for reusable holders. The Part Numbers table in the Specifications tab lists every pad, ring and screen by diameter and pack size.
| Diameter (mm) | Support Material | Pack Size | Part Number | ||
|---|---|---|---|---|---|
| 25 | Cellulose pad | 100 | 225-28 | ||
| 25 | Stainless steel screen, wide mesh | Each | 225-2625 | | |
| 25 | Polypropylene pad (porous plastic) | 100 | 225-2901 | ||
| 37 | Cellulose pad | 100 | 225-27 | ||
| 37 | Cellulose pad | 500 | 225-2700 | ||
| 37 | Cellulose spacer ring (NIOSH 5506 and 5515) | 25 | 225-23 | ||
| 37 | Polypropylene pad (porous plastic) | 100 | 225-2902 | ||
| 37 | Stainless steel screen, wide mesh | Each | 225-26 | | |
| 37 | Stainless steel screen, fine mesh | Each | 225-2637 | | |
| 47 | Cellulose pad | 100 | 225-2903 | ||
| 47 | Stainless steel screen, wide mesh | 2 | 225-2647 | | |
| 47 | Stainless steel screen, fine mesh | Each | 225-2647A | |
