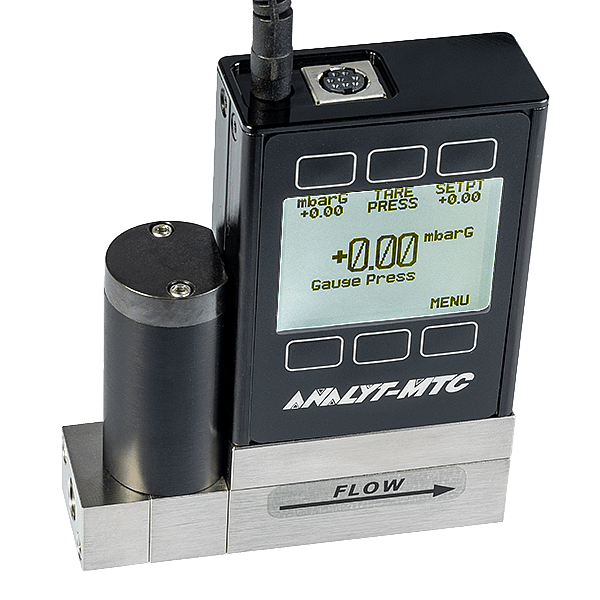

358 Series PC Pressure Controllers
High accuracy, multi-parameter Absolute, Gauge or Differential Pressure Controllers.
Downloads
358 Series PC Pressure Transducers designed to control absolute or gauge pressure of all non-corrosive gases. Also available as Differential Pressure Controller to control and maintain differential pressure between any two points in your process.
Millisecond-response times immediately upon powering up, to display pressure reading in real-time and reach your setpoint, in your choice of engineering units.
Custom process ports and electrical connectors, and your choice of EtherNet/IP, EtherCAT, DeviceNet, Profibus, Modbus (RTU and TCP/IP), or serial communications for easy integration into your industrial process.
- Backlit LCD readout (Optional color TFT dispay)
- Range 5 mbar to 200 bar
- Anti-Corrosive option
| Accuracy | ± 0.25% of full scale High Accuracy Option : ± 0.125% of full scale |
| Repeatability | ± 0.08% of full scale |
| Sensor Response Time | <1 ms |
| Instrument warm-up time | < 1 s |
| Operating temperature | -10 to +60 °C |
| Analog signals options | 4–20 mA, 0–5 VDC, 1–5 VDC, 0–10 VDC |
| Digital signals options | RS-232 serial (default) RS-485 serial, Modbus RTU (over RS-232 or RS-485 serial), Modbus TCP/IP, DeviceNet, EtherCAT, EtherNet/IP, PROFIBUS Portable devices (PB models): Serial over Micro-USB |
| Electrical Connection Options | 8-pin mini-DIN by default, 8-pin M12, DB-9, DB-15, 6-pin locking Portable devices (PB models): Power over Micro-USB Type B |
| Maximum instantaneous differential pressure | Max 13.8 bar |
| Materials | 303, 304, and 316L stainless steel; FKM, alumina ceramic, glass, gold, heat-cured epoxy, heat-cured silicone rubber, polyamide, glass reinforced polyphenylene sulfide, silicon |
| Connections | 1/8′′ NPT female Options : Compression, face seal, push-to-connect, BSPP, SAE, or Swagelok® (including tube, VCO®, and VCR®-compatible). |
